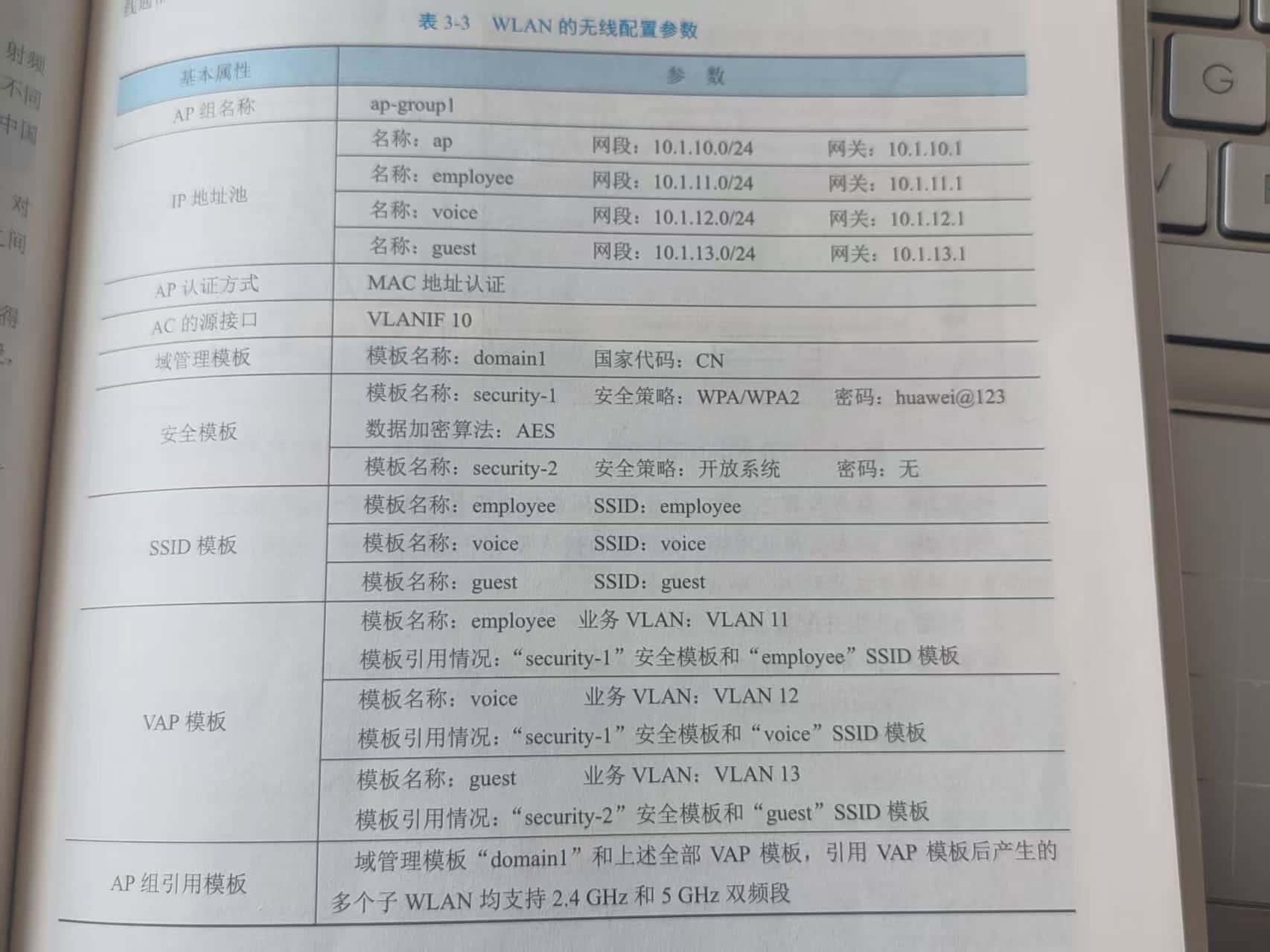

今天来一个Wlan的实验（以下是需求）：

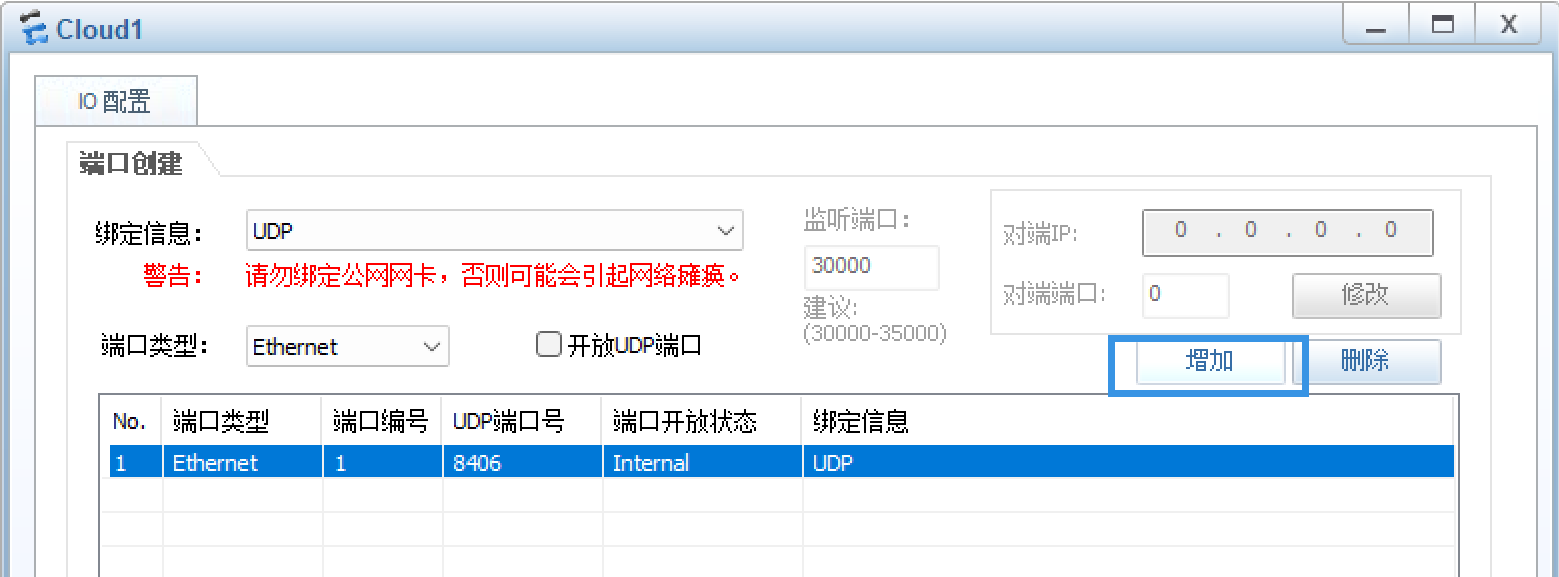

首先在那朵云里添加一个端口

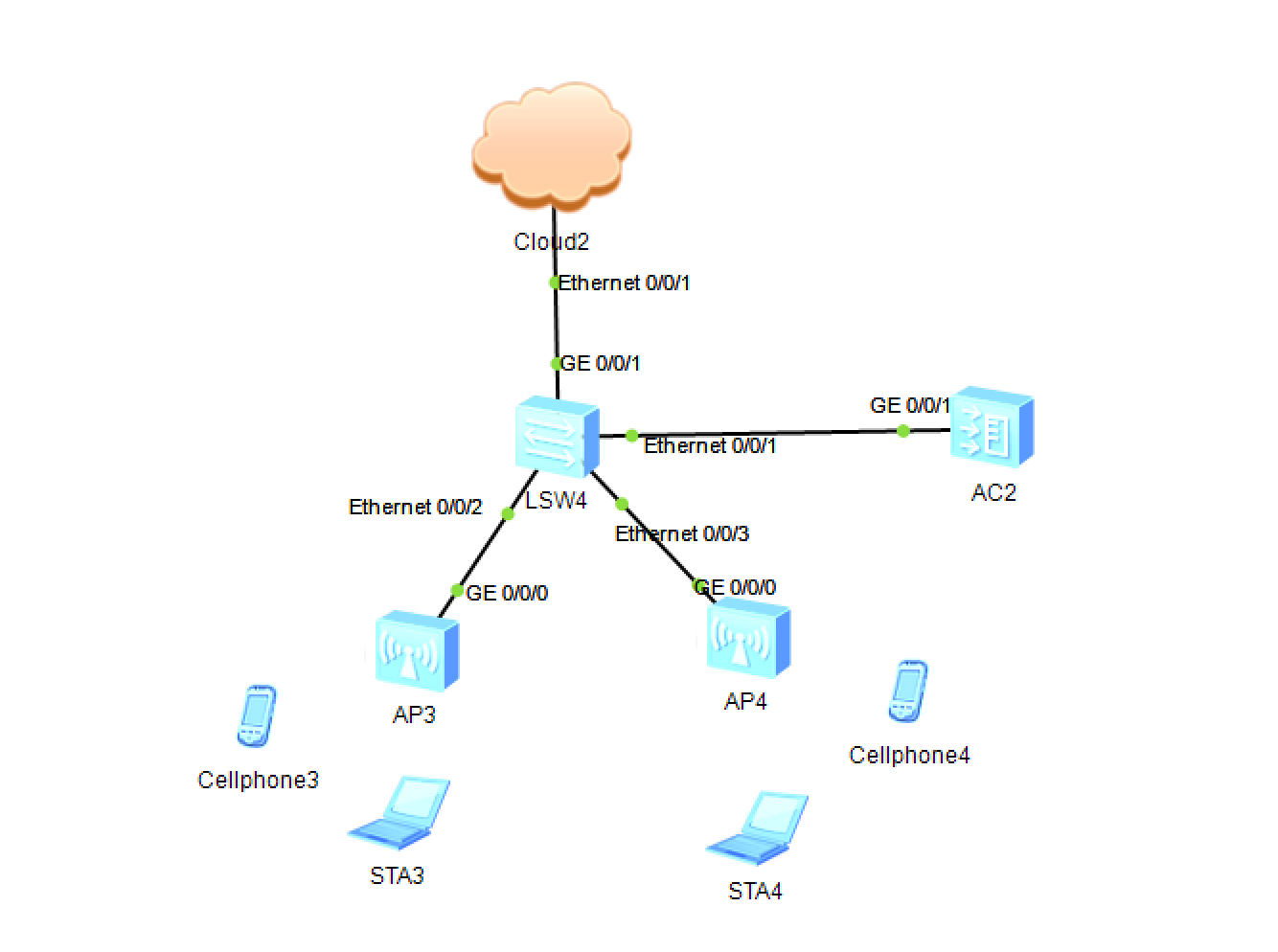

总体拓扑是这个样子的

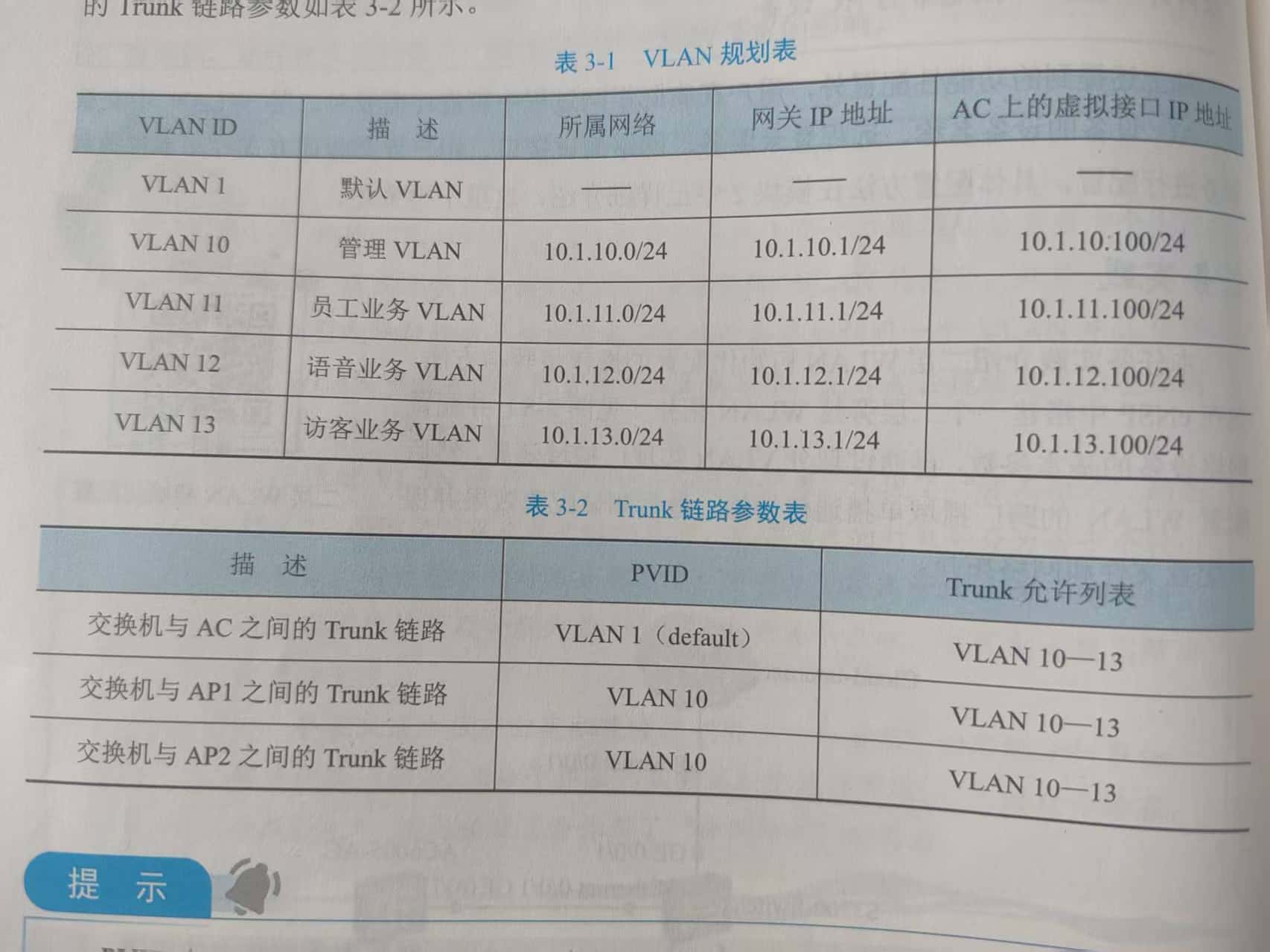

1.按照需求先划分vlan

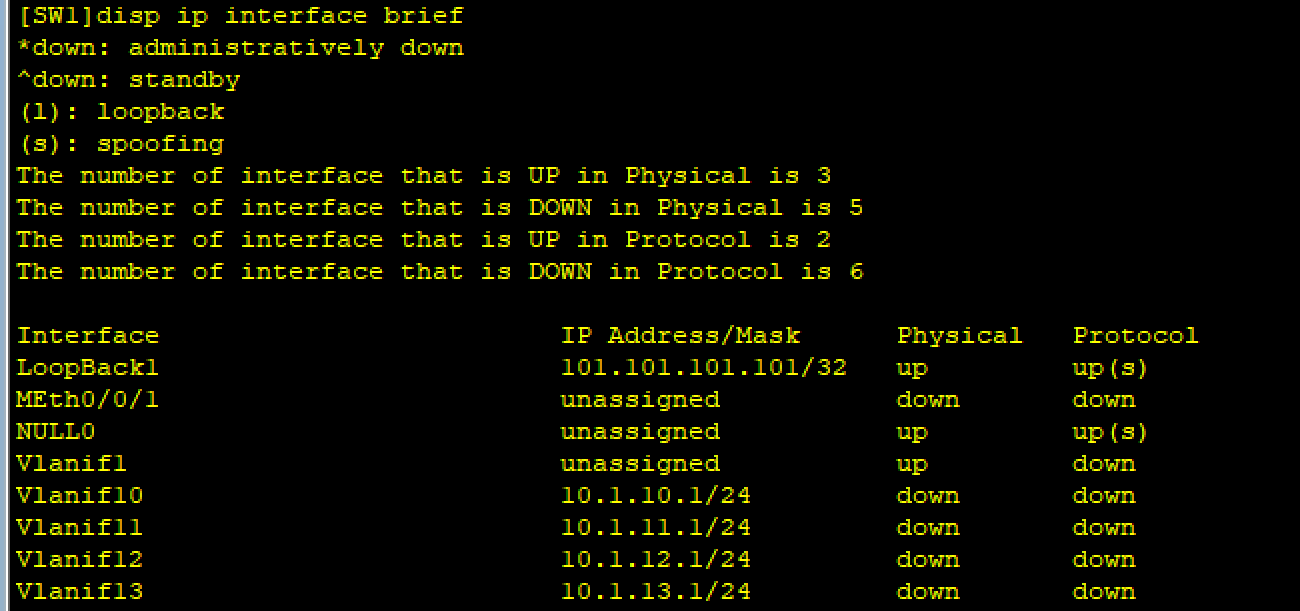

在交换机上配vlan IP作为网关
[SW1]int l1
[SW1-LoopBack1]ip add 101.101.101.101 32
[SW1]vlan batch 10 to 13
[SW1]interface Vlanif 10
[SW1-Vlanif10]ip address 10.1.10.1 24
[SW1-Vlanif10]interface Vlanif 11
[SW1-Vlanif11]ip address 10.1.11.1 24
[SW1-Vlanif11]interface Vlanif 12
[SW1-Vlanif12]ip address 10.1.12.1 24
[SW1-Vlanif12]interface Vlanif 13
[SW1-Vlanif13]ip address 10.1.13.1 24
[SW1-Vlanif13]q
AC上配vlna的虚拟接口
[AC6005]vlan batch 10 to 13
[AC6005]interface Vlanif 10
[AC6005-Vlanif10]ip address 10.1.10.100 24
[AC6005-Vlanif10]interface Vlanif 11
[AC6005-Vlanif11]ip address 10.1.11.100 24
[AC6005-Vlanif11]interface Vlanif 12
[AC6005-Vlanif12]ip address 10.1.12.100 24
[AC6005-Vlanif12]interface Vlanif 13
[AC6005-Vlanif13]ip address 10.1.13.100 24

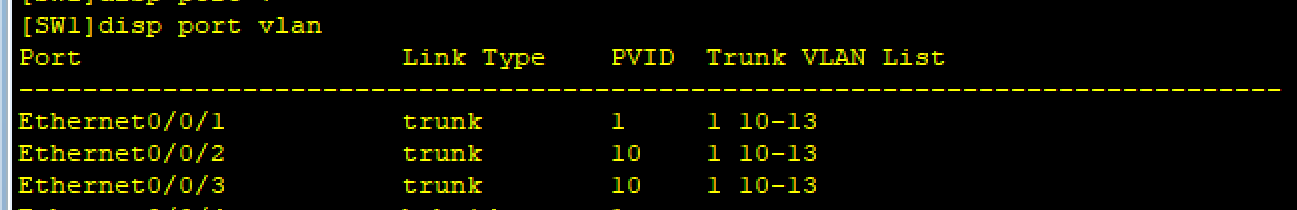

交换机与各设备之间使用trunk链路
[SW1]interface Ethernet0/0/1
[SW1-Ethernet0/0/1]port link-type trunk
[SW1-Ethernet0/0/1]port trunk allow-pass vlan 10 to 13
[SW1-Ethernet0/0/1]interface Ethernet0/0/2
[SW1-Ethernet0/0/2]port link-type trunk
[SW1-Ethernet0/0/2]port trunk pvid vlan 10
[SW1-Ethernet0/0/2]port trunk allow-pass vlan 10 to 13
[SW1-Ethernet0/0/2]interface Ethernet0/0/3
[SW1-Ethernet0/0/3]port link-type trunk
[SW1-Ethernet0/0/3]port trunk pvid vlan 10
[SW1-Ethernet0/0/3]port trunk allow-pass vlan 10 to 13
[SW1-Ethernet0/0/3]q
[AC6005]interface GigabitEthernet0/0/1
[AC6005-GigabitEthernet0/0/1]port link-type trunk
[AC6005-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 to 20
[AC6005-GigabitEthernet0/0/1]q

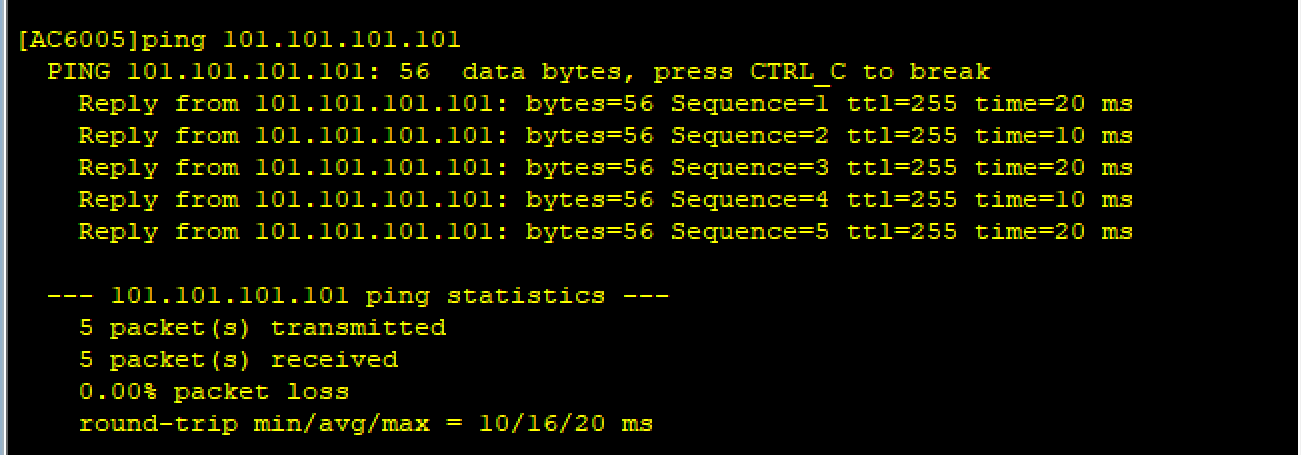

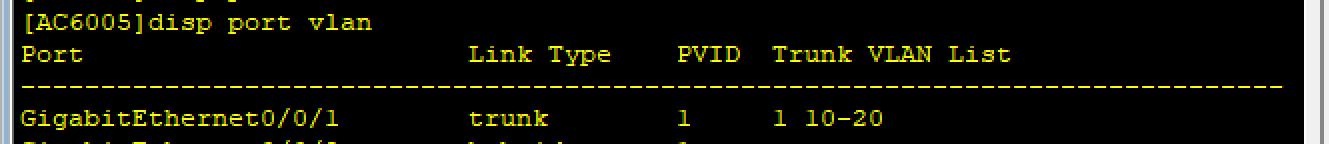

可以ping通交换机的环回口
[AC6005]wlan
[AC6005-wlan-view]ap-group name ap-group1
[AC6005]dhcp enable
[AC6005]ip pool ap
[AC6005-ip-pool-ap]network 10.1.10.0 mask 24
[AC6005-ip-pool-ap]gateway-list 10.1.10.1
[AC6005-ip-pool-ap]ip pool employee
[AC6005-ip-pool-employee]network 10.1.11.0 mask 24
[AC6005-ip-pool-employee]gateway-list 10.1.11.1
[AC6005-ip-pool-employee]ip pool voice
[AC6005-ip-pool-voice]network 10.1.12.0 mask 24
[AC6005-ip-pool-voice]gateway-list 10.1.12.1
[AC6005-ip-pool-voice]ip pool guest
[AC6005-ip-pool-guest]network 10.1.13.0 mask 24
[AC6005-ip-pool-guest]gateway-list 10.1.13.1

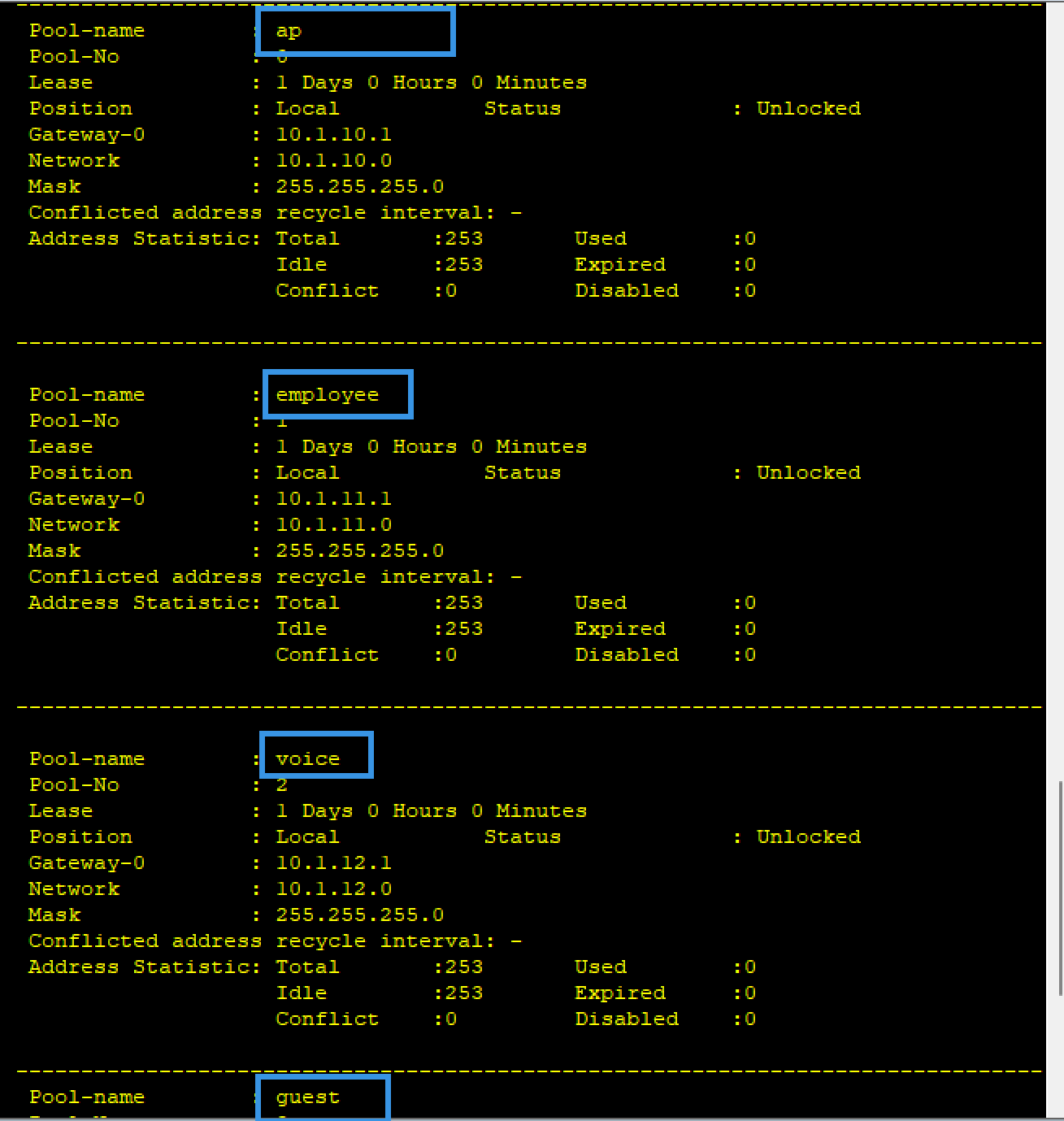

[AC6005-ip-pool-guest]一共创建了四个地址池
进入虚拟接口为vlan的DHCP服务器选择模式为全局
[AC6005]interface Vlanif 10
[AC6005-Vlanif10]dhcp select global
[AC6005-Vlanif10]interface Vlanif 11
[AC6005-Vlanif11]dhcp select global
[AC6005-Vlanif11]interface Vlanif 12
[AC6005-Vlanif12]dhcp select global
[AC6005-Vlanif12]interface Vlanif 13
[AC6005-Vlanif13]dhcp select global

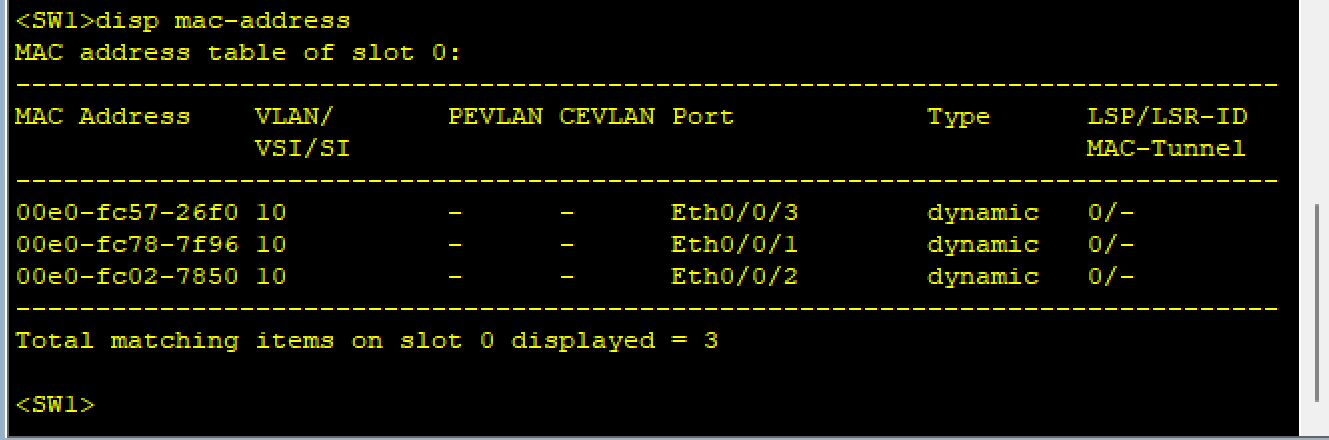

在交换机上查mac
配置AP认证方式为MAC，并加入组
[AC6005]wlan
[AC6005-wlan-view]ap auth-mode mac-auth
[AC6005-wlan-view]ap-mac 00e0-fc02-7850 ap-id 1
[AC6005-wlan-ap-1]ap-group ap-group1
[AC6005-wlan-ap-1]ap-name ap1
[AC6005-wlan-view]ap-mac 00e0-fc57-26f0 ap-id 2
[AC6005-wlan-ap-2]ap-group ap-group1
[AC6005-wlan-ap-2]ap-name ap2

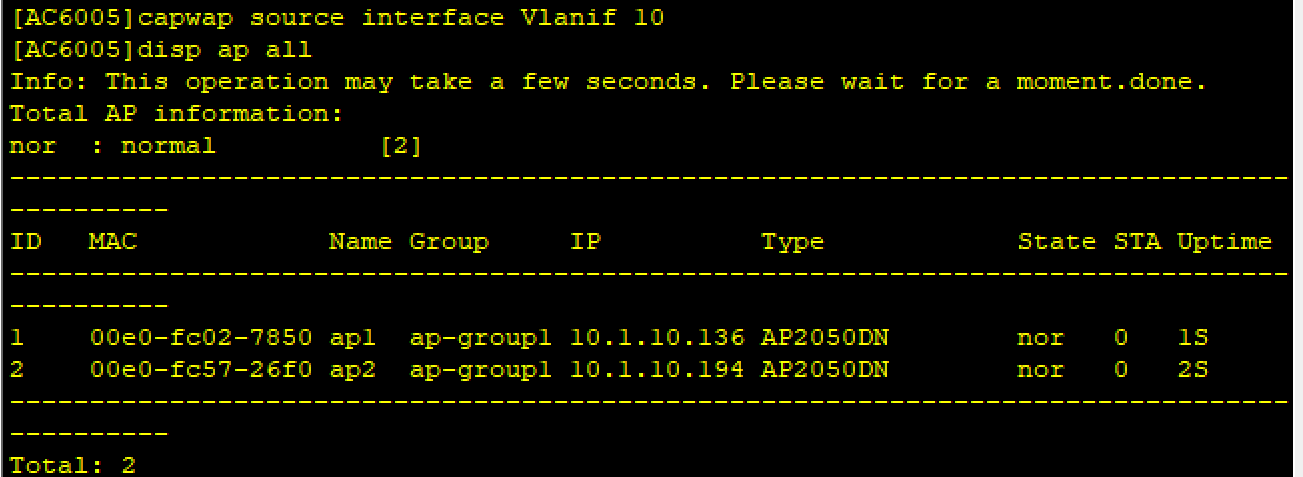

建立capwap隧道
配置并引用WLAN模板
[AC6005]wlan
[AC6005-wlan-view]regulatory-domain-profile name domain1
[AC6005-wlan-regulate-domain-domain1]country-code CN
在AC上创建安全模板
[AC6005-wlan-view]security-profile name security-1
[AC6005-wlan-sec-prof-security-1]security wpa-wpa2 psk pass-phrase fanl@123 aes
[AC6005-wlan-view]security-profile name security-2
[AC6005-wlan-sec-prof-security-2]security open
在AC上创建SSID模板
[AC6005-wlan-view]ssid-profile name employee
[AC6005-wlan-ssid-prof-employee]ssid employee.
[AC6005-wlan-view]ssid-profile name voice
[AC6005-wlan-ssid-prof-voice]ssid voice
[AC6005-wlan-view]ssid-profile name guest
[AC6005-wlan-ssid-prof-guest]ssid guest
[AC6005-wlan-ssid-prof-guest]q在AC上创建VAP模板
[AC6005-wlan-view]vap-profile name employee
[AC6005-wlan-vap-prof-employee]service-vlan vlan-id 11
[AC6005-wlan-vap-prof-employee]security-profile security-1
[AC6005-wlan-vap-prof-employee]ssid-profile employee
[AC6005-wlan-view]vap-profile name voice
[AC6005-wlan-vap-prof-voice]service-vlan vlan-id 12
[AC6005-wlan-vap-prof-voice]security-profile security-1
Info: This operation may take a few seconds, please wait.done.
[AC6005-wlan-vap-prof-voice]ssid-profile voice
Info: This operation may take a few seconds, please wait.done.
[AC6005-wlan-vap-prof-voice]q
[AC6005-wlan-view]vap-profile name guest
[AC6005-wlan-vap-prof-guest]service-vlan vlan-id 13
Info: This operation may take a few seconds, please wait.done.
[AC6005-wlan-vap-prof-guest]security-profile security-2
Info: This operation may take a few seconds, please wait.done.
[AC6005-wlan-vap-prof-guest]ssid-profile guest
Info: This operation may take a few seconds, please wait.done.
[AC6005-wlan-vap-prof-guest]q
为AP组引用域管理模板
[AC6005-wlan-view]ap-group name ap-group1
[AC6005-wlan-ap-group-ap-group1]regulatory-domain-profile domain1
为AP组引用全部VAP模板
[AC6005-wlan-ap-group-ap-group1]vap-profile employee wlan 1 radio all
Info: This operation may take a few seconds, please wait...done.
[AC6005-wlan-ap-group-ap-group1]vap-profile voice wlan 2 radio all
Info: This operation may take a few seconds, please wait...done.
[AC6005-wlan-ap-group-ap-group1]vap-profile guest wlan 3 radio all
Info: This operation may take a few seconds, please wait...done.
最终成果
